Accomplish more downhole with advanced liner hanger systems

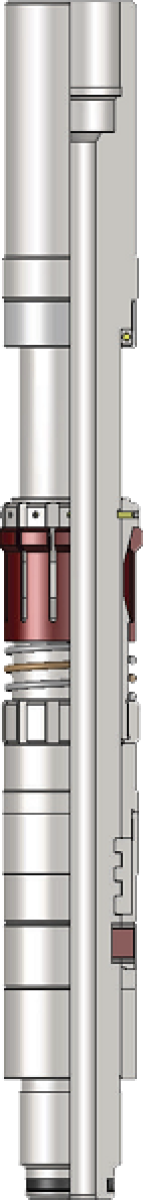

RPS Packer Setting Tool

Achieve maximum dynamic load for optimal, reliable packer settings

Used with the DH-1 or DH-2 liner running tool, the RPS packer setting tool provides best-in-class mechanical packer setting capabilities.

Innovative Features

  • Hammer sleeve for dynamic loading
  • Shear indicator for weight verification
  • Bearing assembly promotes efficient weight transfer
  • High-torque/tensile connections

Deployment

The service technician uses the RPS hammer sleeve to verify that a desired setting weight has been applied to the packer as well as a dynamic load when the hammer sleeve actuates. The dynamic load transfers greater energy onto the packer setting sleeve, thus increasing reliability of the packer setting. The RPS bearing assembly allows for rotation of the workstring while setting the packer, thereby reducing drag and increasing the setting force transmitted into the liner top packer.


Size (in.) Casing Weight (lb/ft) Tensile Rating (kips) Setting Load Rating (kips) Torque Rating (ft-lbs)
4-1/2 x 7 23-32 370 300 20,440
5 x 7 23-32 370 300 20,440
5-1/2 x 7-5/8 26.4-39 370 300 20,440
7 x 9-5/8 40-53.5 1000 500 80,000
7-5/8 x 9-5/8 40-53.5 1000 500 80,000
