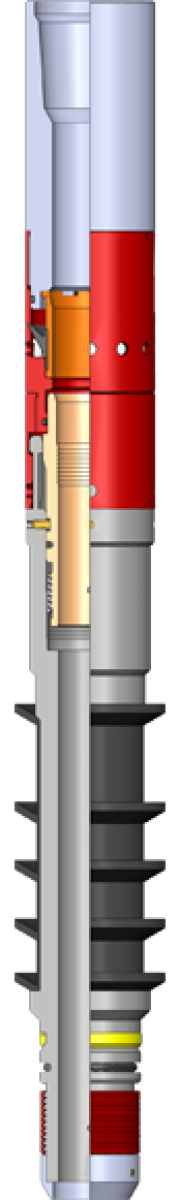

EZD Liner Wiper Plug

Economical plug offers reliable locking, release

Primarily designed for land operations where liners reach 7-5/8", the EZD liner wiper plug incorporates a positive locking mechanism and internal seal mechanism for reliable release.

Innovative Features

  • Latch-down nose holds 7,500 PSI back pressure after the plug is bumped

Deployment

This plug is run in combination with our plug launch tool.

Liner / Casing Size (in.) Maximum OD (in.) Top Dart No-Go (in.) Bump Pressure (psi)
4-1/2 – 6-1/8 3.620 1.880 7,500
