Accomplish more downhole with advanced liner hanger systems
Save money and space with innovative all-in-one system

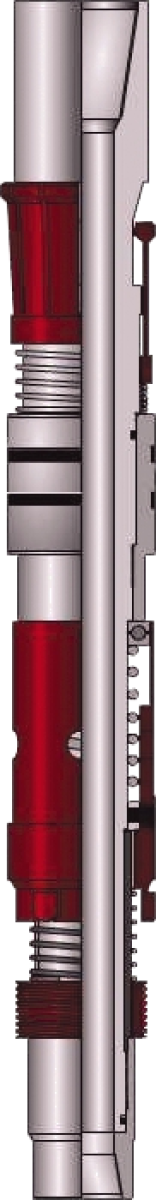

The all-in-one A1 liner running tool combines a clutched liner running tool with a tieback sleeve cementing packoff and packer setting tool.
Innovative Features
- Unique design eliminates multiple threaded connections
- Single mandrel provides for low cost and increased tool durability
- Clutched for rotation off ledges and setting mechanical hangers
- Packer setting collet for reliable packer setting
- Large ID for increased surge reduction
| Liner Size (in.) | Casing Weight (lb/ft) | Tensile Rating (kips) | Torque Rating (ft-lb) |
|---|---|---|---|
| 4 x 5-1/2 | 126-32 | 120 | 3,000 |
| 4-1/2 or 5 x 7 | 11.6- 15.1 or 26-32 | 300 | 10,000 |
| 5-1/2 x 7-5/8 | 26.4-39 | 300 | 10,000 |
| 7 x 9-5/8 | 40-53.5 | 500 | 12,000 |
| 7-5/8 x 9-5/8 | 47-53.5 | 500 | 12,000 |
